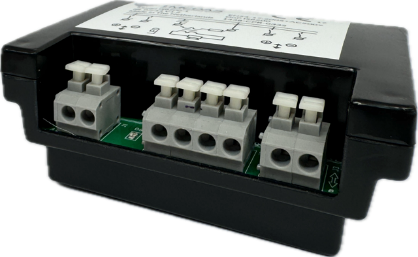

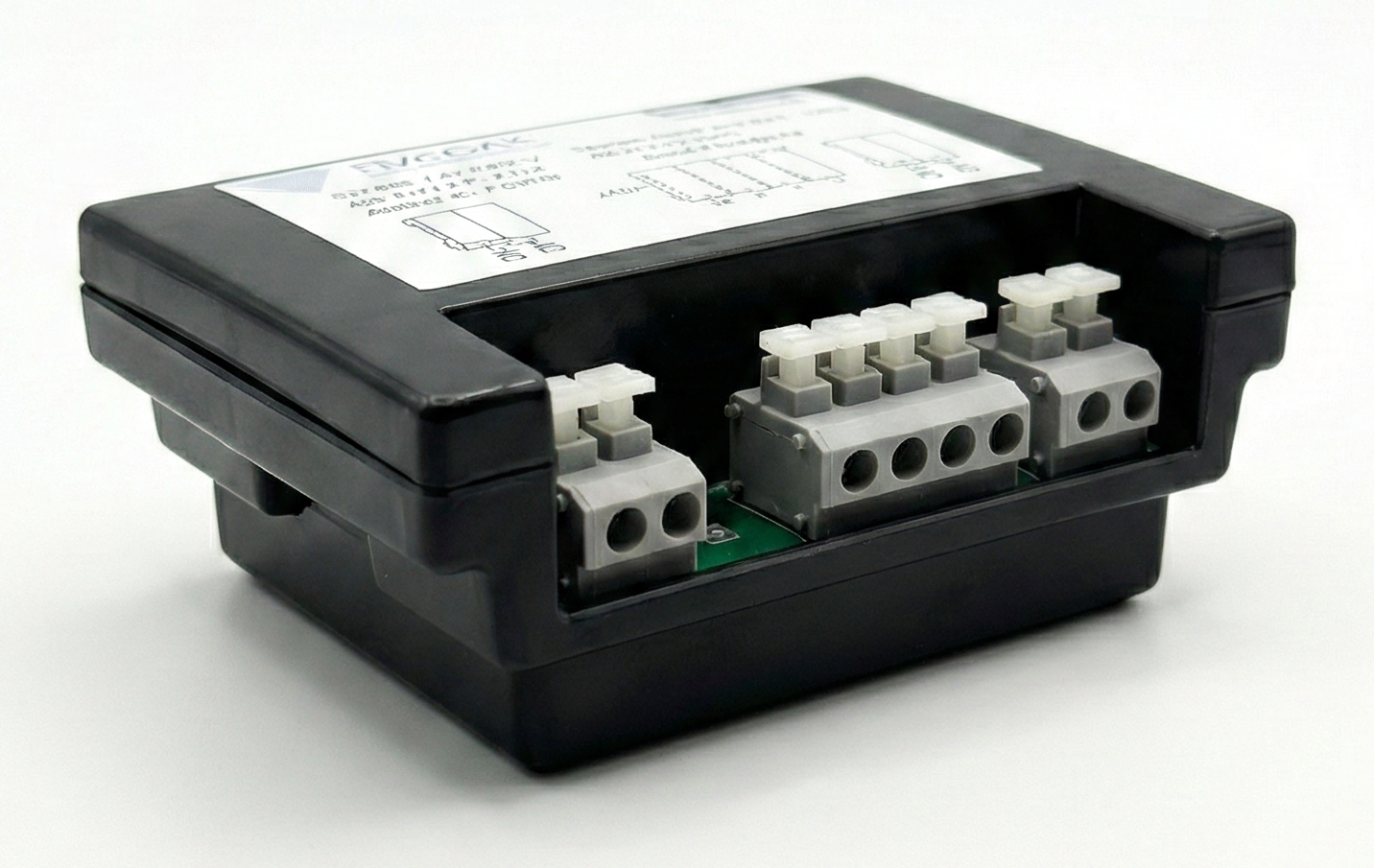

IS8200-1 Isolator | EN 54-17 | 200W Loop Capacity

EN 54-17 Certified IS8200-1 Loop Isolator with a maximum of 90 isolators or 200W in one speaker loop.

100V AC audio with a 24V DC power requirement.

Description

The IS8200-1 is designed to use in EN 54 compliant voice alarm evacuation systems. Installed on each loudspeaker in the loudspeaker line, it automatically isolates a faulty segment while keeping the rest of the loudspeaker line operational.

The IS8200-1 isolator requires an IS8200-100 Loop Monitor to power the isolators.

Suitable for:

Schools/Universities

Hospitals

Office buildings

Industrial facilities

Download the IS8200-1 datasheet here

Specifications

Maximum audio power on speaker connection block

Certificate

1438-CPR-0332

Dimensions (L/W/H)

61,5mm/85mm/36mm

Operating temperature

-10 °C to 55 °C

Compatible systems

Class D amplifiers with transformer

Frequently asked questions

Are VAES products compatible with other brands?

Absolutely. Unlike many competitors, VAES components integrate with any 100V voice alarm central, making them flexible and cost-effective for diverse projects.
